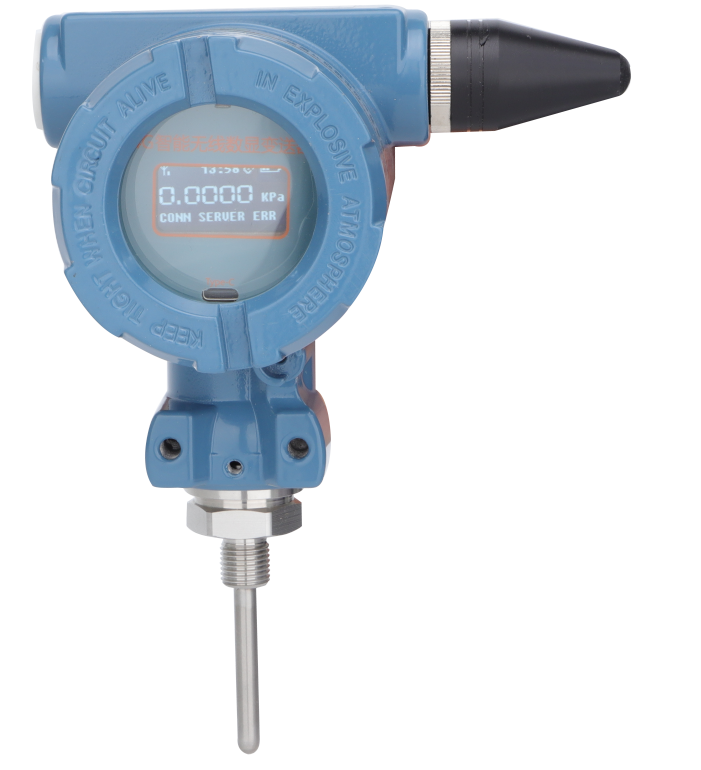

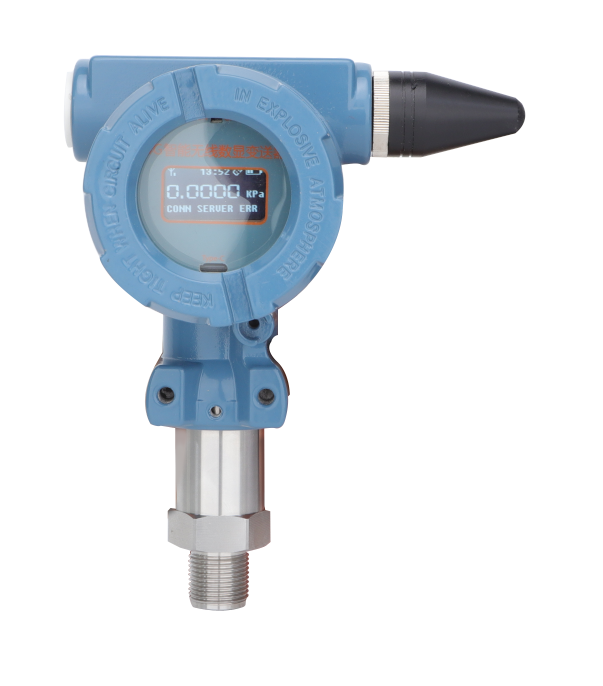

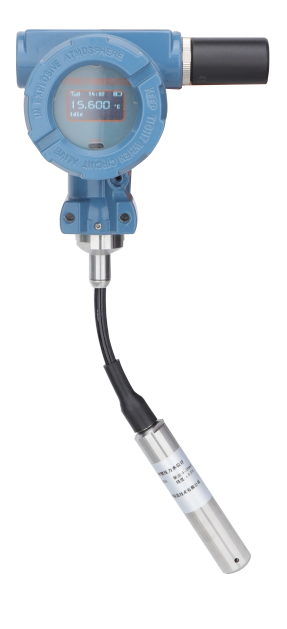

HR3188P/L 4G Smart Pressure Level Sensor

The HR3188p pressure transmitter is one of the HR3188 series products. The HR3188 series can be equipped with different sensor probes, and comes with a pressure sensor (which is an intelligent pressure sensor). Designed, developed, and produced according to explosion-proof standards,low power-consumption. Its a product with high cost-effectiveness, practicality, and stability. It is mainly used in fields such as chemical, engineering, factories, petroleum, pipeline networks, pipe galleries, and outdoor pipeline and storage tank pressure monitoring; Underground pipeline pressure monitoring; Urban tap water pipeline network monitoring system; Pressure monitoring of fire protection pipeline network; Pressure monitoring of heating pipeline network; Steam pipeline pressure monitoring.



Power supply: 3.6V battery power supply

Working mode: timed uploading mode

Range: 0-10kPa/100MPa

Accuracy: 0.5% F.S.

Power consumption: Sleep current ≤ 5uA; Average working current<50mA;

Transmission power and gain: 100mW, 20dB

Product related

  • Download: 点击下载
  • Brand : 恒瑞HighReach
  • Model : HR3188P/L
  • Mailbox : highreach@hr-tool.cn
  • Phone : 0917-3208995

Technical Parameters

þPower supply: 3.6V battery power supply

þPower consumption: Sleep current ≤ 5uA; Average working current<50mA;

þWorking mode: timed uploading mode

þRange: 0-10kPa/100MPa

þAccuracy: 0.5% F.S.

þDebugging method: Serial port or mobile app Bluetooth settings

þTransmission power and gain: 100mW, 20dB

þInstallation method:

Thread or bracket installation. The thread can be customized with a default specification of M20 * 1.5mm.
