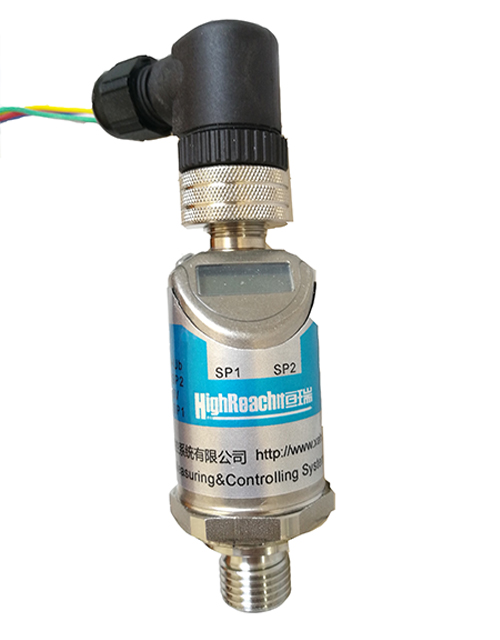

HR5500 adjustable pressure switch

HRDP5500 adjustable pressure switch is an integrated multi-functional product designed and produced for large-scale equipment such as domestic machine tools. The product uses a wide temperature zone with high stability and pressure sensitive components.
No. processing integrating measurement display and control; outputting control signals and pressure digital signals simultaneously according to set conditions; safe and reliable; easy to operate and convenient to use. The product range is rich widely used in hydropower tap water petroleum chemical machinery hydraulic and other industries to measure display and control the pressure of fluid medium.

Digital error correction

Live display and control

Button adjustment easy to use

Anti-surge electromagnetic interference

Wide temperature zone high stability pressure sensitive component

Product related

  • Download: 点击下载
  • Brand : 恒瑞HighReach
  • Model : HRDP5500
  • Mailbox : highreach@hr-tool.cn
  • Phone : 0917-3208995

Technical Parameters

Main performance indicators
Display accuracy ±0.25%(typical),±0.5% F·S(maximum)
control precision ±0.5% F·S
Range -0.1~0~0.01~100MPa
Long-term stability 0.1%F·S/year
Overload capability 3X F·S
Output Two-way PNP or NPN (optional combination)
Pressure type Gauge pressure absolute pressure sealed reference pressure
Temperature characteristics
Compensation temperature 0~70℃
Operating temperature -20~85℃
Storage temperature -40~85℃
Electrical characteristics
Supply voltage 5~36V DC(typical 24V)

Power protection Anti-reverse connection over voltage protection
Display 4 digital
Display range -1999~9999
Control node  2 node
Output current 250mA
Current consumption <35mA
Output response <10ms
Structural characteristics
Measuring medium Compatible with stainless steel and fluoro rubber
Pressure interface  M20*1.5 male G1/2 male
Housing material 316L stainless steel
Environmental characteristics
Protection level IP65
Insulation 100MΩ@50V
Vibration 20g 20~5000Hz
Shock 20g 11ms

Related parameters

HRDP5500结构尺寸
