HR8500 level & temperature integrated transmitter

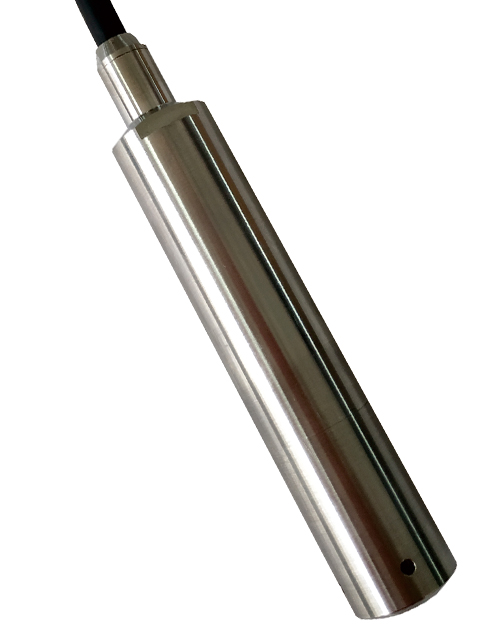

HR8500 intelligence water level & temperature transmitter is a submersible meter with full stainless steel sealed construction to measure static water level pressure and media temperature.
Rich product line they are widely used in industries such as industrial processesmining hydrology water conservancy geological exploration and other industries.

High quality sensing elements

Standard 4～20mA current

Anti-surge electromagnetic interference

Integral measurement of level and temperature

Reverse power protection over voltage protection

Full stainless steel sealed construction IP68 protection.

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HR8500
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

Main Specification
Water level accuracy		＜ ±0.5% F·S
Range		0～10 mH2O…300 mH2O
Long-term stability		0.2%F·S/year （>20m）
		0.1%F·S/year（≤20m）
Overload capability		2X F·S
Temp. Accuracy		±0.5℃（-40～100℃）
Temp. Resolution		0.01℃
Temperature characteristics
Compensation temp.		-40～100℃
Operating temp.		-40～100℃
Drift of temp.		Zero： 0.05%F.S/℃
		F.S：0.05%F.S/℃
Storage temp.		-45～125℃
Electrical characteristics
Power Supply		DC12~30V
Power Protection		Anti-reverse connection over voltage protection
Output method	4～20mA Signal	Water level：4～20mA Temp：4～20mA Load capacity：(U-12)/0.02（Ω）
Structural characteristics
Measuring medium		Compatible with stainless steel and fluoro rubber
Housing material		Stainless steel 316L
Cable material		Polyurethane or PVC optional
Cable		Φ7.6mm with Shielding layer and guide hole
Environmental characteristics
Protection level		IP68
Insulation		100MΩ@50V
Vibration		20g 20～5000Hz
Shock		20g 11ms
