HR8801 water level temperature monitoring recorder

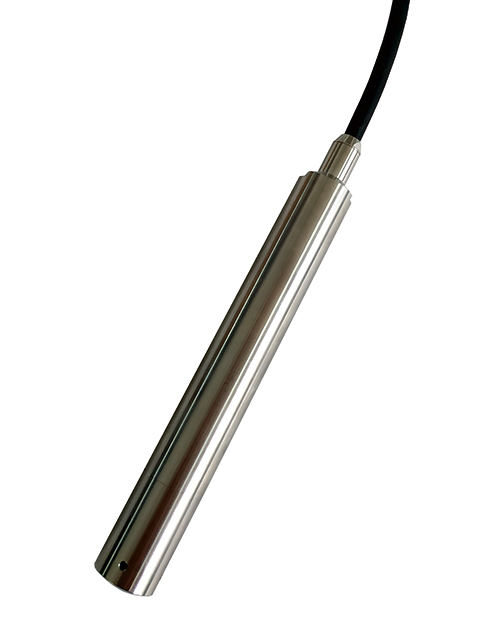

HR8801 Water level and temperature recorder is a groundwater monitoring instrument which can be either external powered or internal battery self-powered it is used for the long-term recording of the depth (pressure) and the temperature. The transmitter contains the water level and temperature sensor built-in large capacity non-volatile memory and high capacity long-life lithium battery it ‘s entire stainless steel structure enables all functions are integrated inside a metal casing it applies to measure the surface water groundwater as well as the water level of marine environment.

Dry capacitive ceramic sensor

Nice stability on long-term service

High precision up to 0.05% F.S

Strong overload capability preservative

Full temperature compensation full scale digital calibration

RS485 standard MODBUS-RTU protocol can be used in DCS or PLC systems

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HR8801
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

Main performance specification
Water level range	0～10 20 50 80 100mH2O
Water level range	User can specify range and factory calibrate
Accuracy	±0.05％F·S
Resolution	0.005％F·S
Long-term stability	＜±0.05%F·S/year
Overload capacity	＞5X F·S
Recording frequency	1～5760minute
Temperature resolution	0.05℃
Accuracy of temperature sensor	±0.2 ℃（0～70℃）
Internal battery life	10years (Record once /60 minutes)
Storage Capacity	＞50000sets data(water level temperature time and power voltage)
Real Time Clock	＜±5minutes/year
Temperature characteristics
Compensation temperature	0～50℃
Working Temperature	-20～85℃
Storage Temperature	-40～125℃
Electrical characteristics
Supply voltage	External power: 5～30VDC
Supply voltage	Internal power: 2.7～3.6VDC
Communication interface protection	2KV surge voltage
Load capability	128 device addressing nodes
output method	RS485 interface MODBUS-RTU protocol
Transmission distance	1000m
stand-by current	＜5µA
Working current	About 4mA
Insulation	100MΩ @50V
Mechanical characteristics
Sensor life	＞107 times of full scale pressure cycle
Material in contact with liquid	Aluminium oxide ceramic gold plated
Sealing ring material	Fluoro rubber
Housing material	316L stainless steel or titanium alloy
Cable material	PU or PVC
Weight	About 300g

Related parameters

Electrical connections

Wire color	Red	Yellow	Blue	Green
Definition	V+	V-	RS485-A	RS485-B
