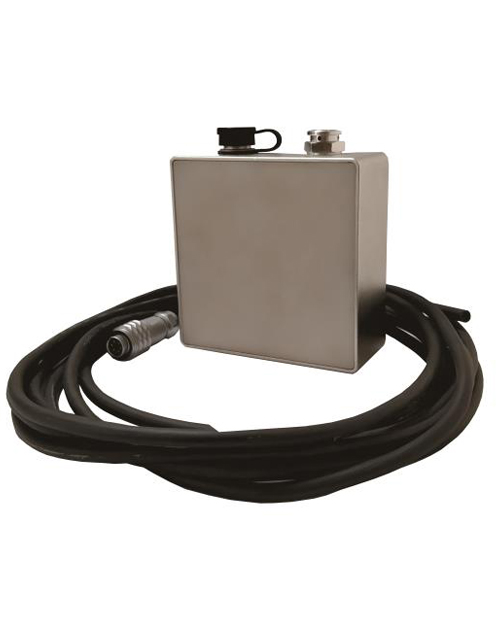

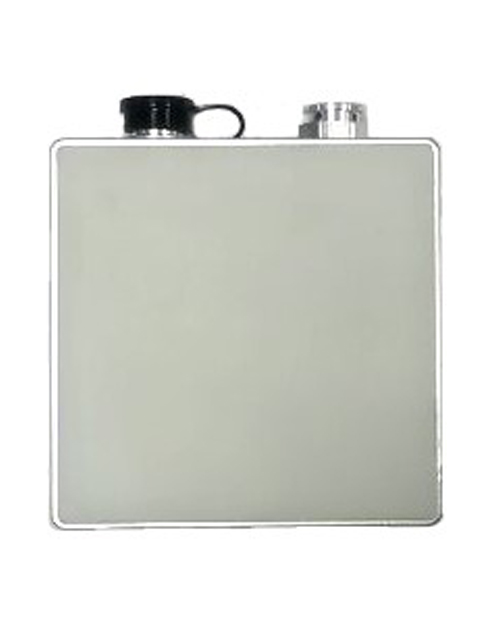

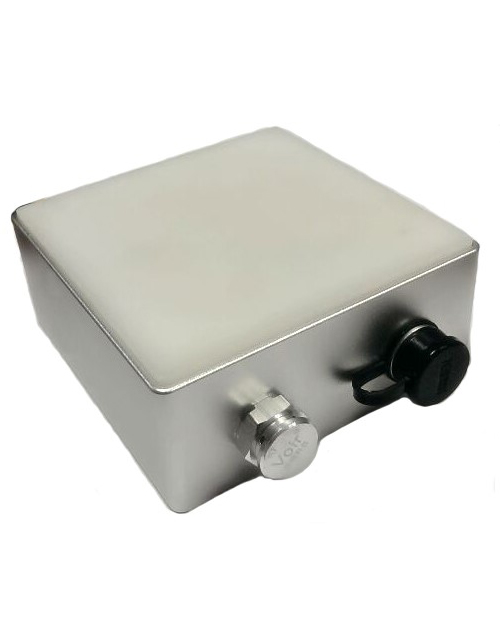

HR.FSL-1 Radar Velocity Meter

HR.FSL-1 is a velocity measuring instrument using microwave technology which can be used with water level detection for hydrological monitoring. It is designed for surface flow monitoring of natural rivers canals/cules/pipes etc. and flood monitoring in urban flood seasons such as low-lying Ground water drain flow rate monitoring etc. The product absorbs the 24GHz planar microstrip radar technology of InnoSenT from Germany and adopts its own back-end processing technology to accurately extract the water flow speed which can realize non-contact and unmanned automatic monitoring.

Built-in German InnoSenT 24GHz (ISM standard band) radar detection module

Several communication interfaces can be set to facilitate user system docking

Measurement operation and standby mode combined to reduce consumption

CW planar microstrip radar non-contact detection free from weather sediment and floating objects

Fast and accurate measurement stable data output suitable for high flow rate environments during flood periods

The transmission frequency of the antenna is flexible and adjustable which can effectively avoid mutual interference of multiple products.

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HR.FSL-1
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

Effective distance	0.5 ~ 30 m
Speed range	0.15 ~ 15 m/s
Resolution	0.01 m/s
Accuracy	±0.02 m/s
Start duration	＜ 3 s
Measuring duration	3~240s
Antenna type	Planar microstrip array antenna 32°× 14°
Radio frequency	24.000 ~ 24.250 GHz
Transmit power	26 dBm
Communication interface	RS-232(default)/ RS-485 / SDI-12 / 4-20 electric current loop mAelectric current loop
Digital type	9600(default)8n1; baud rate adjustable
Working voltage	+7 ~ 28 V DC
Working current	Normal operating mode 12V current 110mA Standby mode current ≤ 1mA
Working temperature	-40 ~ 60 ℃
Protection level	IP66
Dimension（length×width×height）	100×100×40（mm）
Housing material	Front cover POM back cover aluminum alloy
