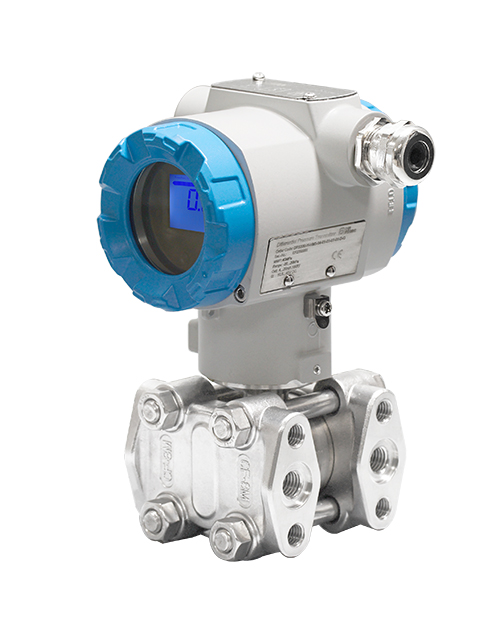

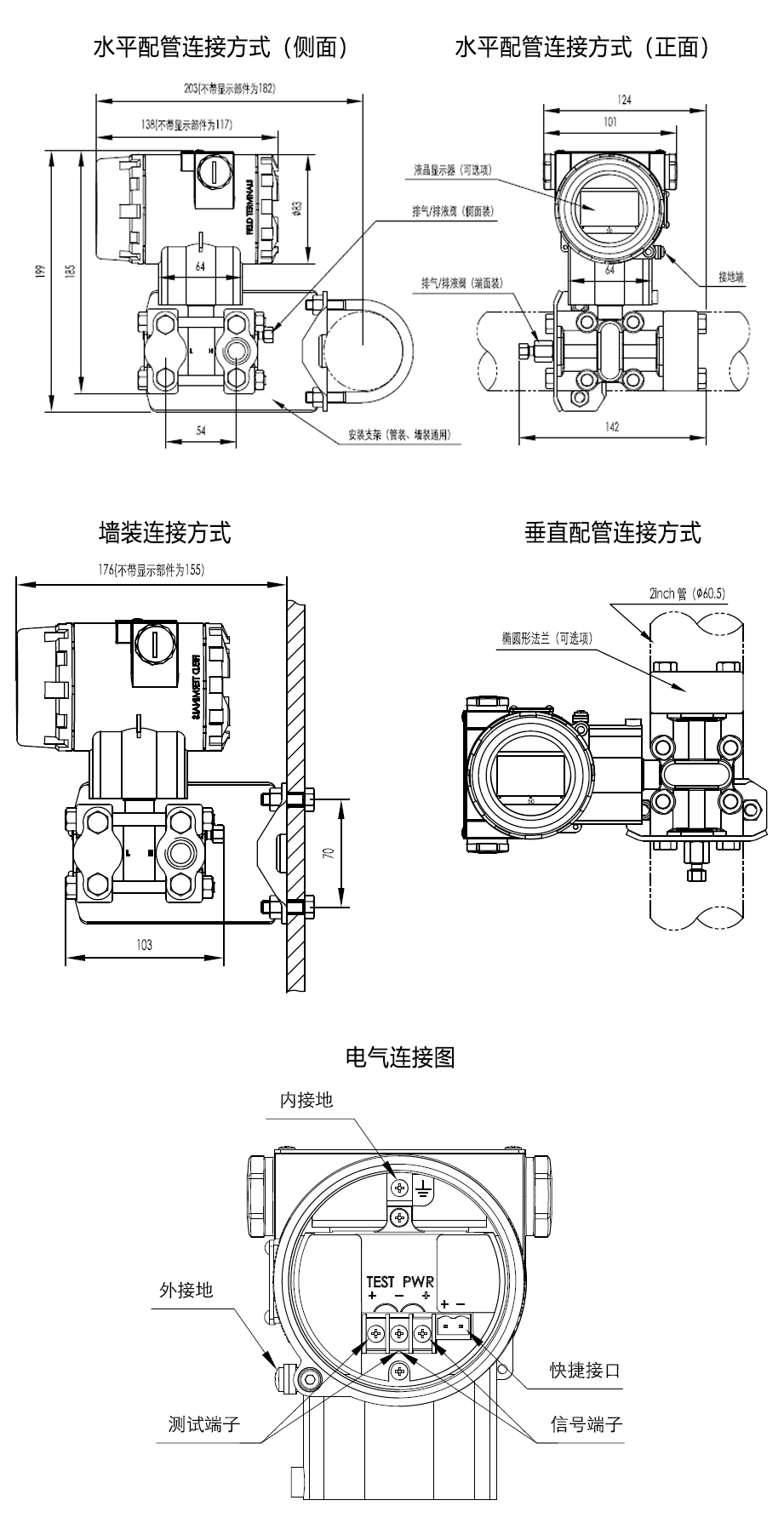

The HR3051-DGP/DAP Bracket Installation Gauge/Absolute Pressure Transmitter is used for level density and pressure measurement of liquid gas and steam. Then it will outputs 4mA~20mA DC HART signal and also it could be connected to RST375 hand communicator or RSM100Modem to do the specification setting and process control.

Can be adjusted freely within the upper and lower limits of the range

Zero and span can be adjusted to any value within the measurement range in the table

The change in mounting position parallel to the diaphragm surface does not cause zero drift

2-wire system 4 to 20mADC optional HART output digital communication selectable linear or square root output

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HR3051-DGP/DAP
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

Environmental Temperature Effect

Range code	-20℃～65℃ Total effect value
B/L	±(0.30×TD+0.20)%×Span
Other	±(0.20×TD+0.10)%×Span
Range code	-40℃～-20℃ and 65℃～85℃ Total effect value
B/L	±(0.30×TD+0.20)%×Span
Other	±(0.20×TD+0.10)%×Span

Over range effect:±0.075%×Span Long-term stability

Range code	Effect value
B/L	±0.2%×Span/1year
Other	±0.1%×Span/1year

Power effect
±0.001% /10V (12～42V DC) negligible

2 Functional specification
Pressure range and limits(HR3051-DGP Gauge Pressure Transmitter)

Range/limit		kPa	bar
B	Range	0.6～6	6～60mbar
B	Limits	-6～6	-60～60mbar
C	Range	2～40	0.02～0.4
C	Limits	-40～40	-0.4～0.4
D	Range	2.5～250	0.025～2.5
D	Limits	-100～250	-1～2.5
E	Range	20～2000	0.2～20
E	Limits	-100～3000	-1～30
G	Range	0.1～10MPa	1～100
G	Limits	-0.1～10MPa	-1～100
H	Range	0.21～21 MPa	2.1～210
H	Limits	-0.1～21 MPa	-1～210
I	Range	0.4～40 MPa	4～400
I	Limits	-0.1～40 MPa	-1～400
