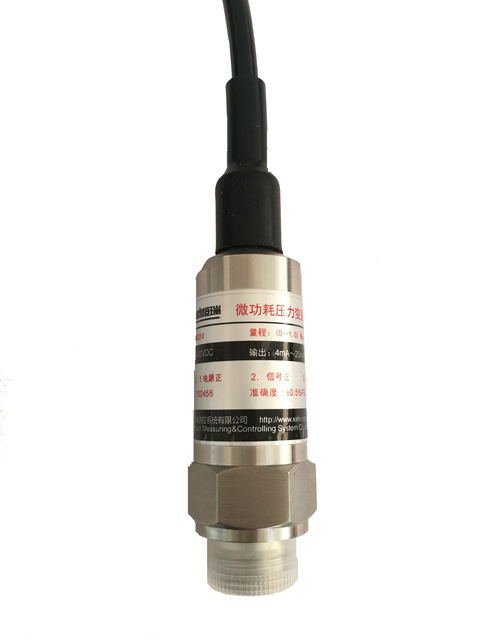

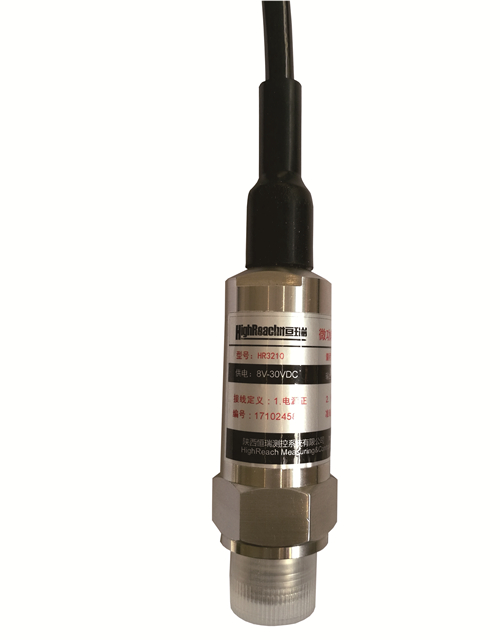

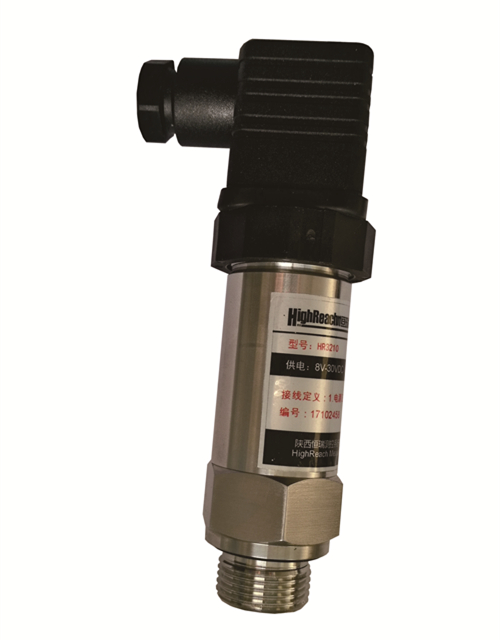

HR3210 Micro-power Pressure Transmitter

HR3210 series lower power pressure transmitter is produced especially to measure liquid pressure in the field without power supply. It is stable reliable high precision and easy to assembly and disassemble.
It uses high-performance pressure sensor 1Cr18Ni9Ti stainless steel full-welded construction intrinsic safety type circuit design.
The biggest advantage of the transmitter is low power dissipation the operating current is lower than 900uA so it is easy for battery supply in open field.
Quick response the single-chip can be used to make the intermittent power supply pressure acquisition system. It can reach the balance within 400uS when power on obtain accurate data  and then turn off the power. It will turn on when collecting data.
