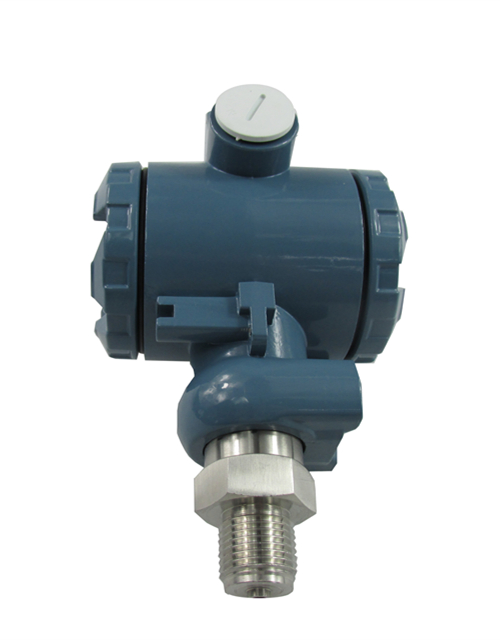

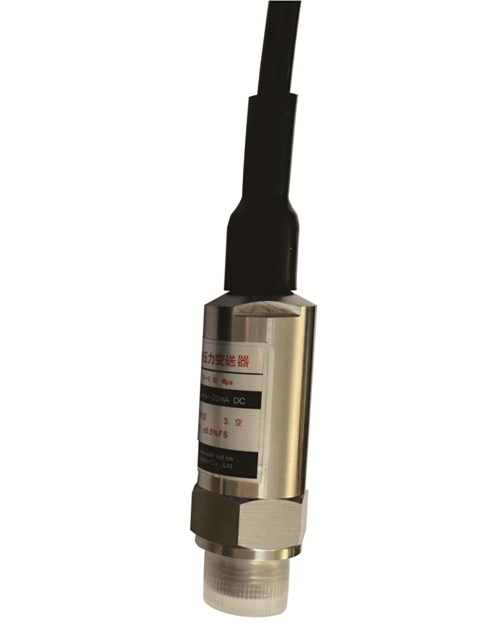

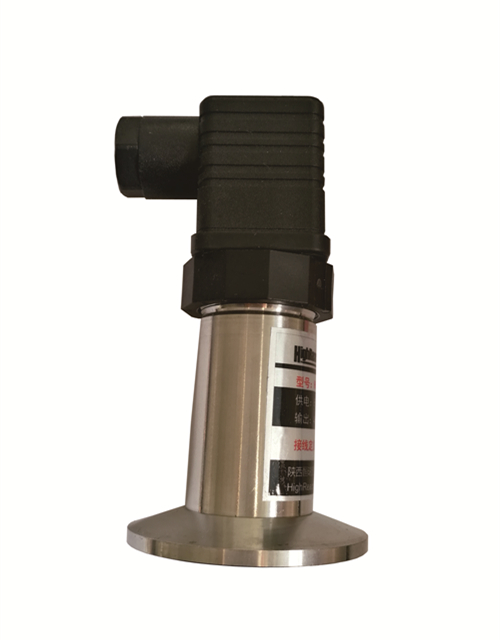

HR310 Series Digital Pressure Transmitter

HR310 series digital pressure transmitter use top quality pressure components with mixed signal processing technology and unique compensation methods to realize high precision digital pressure measurement, F S digital linearity correction, full temperature digital temperature compensation, compensation data stored in nonvolatile memory, multiple safety protection system to avoid the products cannot be used due to correction data lost; Circuit part with power and watchdog monitor, mechanical part with full seal stainless steel structure, both of them improve the reliability of the whole transmitter. The high precision digital pressure transmitter is widely and successfully used in many industries, such as pressure measurement of industry, hydrology and water conservancy, geological prospecting and etc.

Anti-surge, electromagnetic interference

High stable pressure sensing unit, with long-term stability

High precision, up to 0.05％F.S(Linearity, repeatability, hysteresis)

Adopts mixed signal microprocessor to realize high precision compensation

RS485 Standard MODBUS-RTU Protocol output, can be used in DCS or PLC system;

Low power consumption, when operating at full speed, the power consumption is about 4mA, outstanding performance on external battery supply

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HR310
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

Main performance indicators
Range	0～0.01～100MPa
Accuracy	0.05％F.S（Optional），0.1％ F·S ,　0.25%F·S
Resolution	0.005％F.S
Stability	＜0.1%F.S/year
Overload capability	2X F.S
Temperature characteristics
Compensation temperature	0～70℃
Operating temperature	-20～85℃
Storage temperature	-40～125℃
Electrical characteristics
Power Supply	24VDC（9～30V）
Communication interface protection	（2KV） Surge voltage
Load capability	128 transmitter nodes
Output method	RS485 interface ,MODBUS-RTU
Insulation	100MΩ @50V
Structural characteristics
Sensor service life	106 times full pressure running
Contacting with liquid material	316L stainless steel
Sealing material	Fluororubber
Housing material	316L stainless steel(titanium alloy optional)
Cable material	Polyurethane, PVC optional
Weight	~200g
Environmental characteristics
Vibration	20g 20～5000Hz
Shock	20g 11ms
Protection level	IP67
Explosion-proof grade	ExiaⅡC T6
