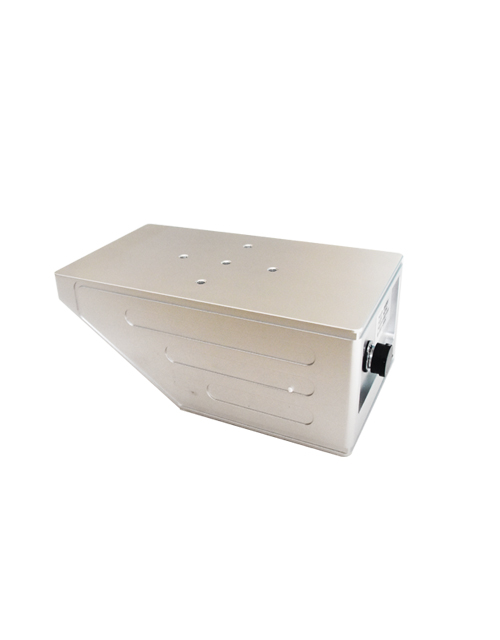

This open canal flow meter is composed of radar flow meter, radar water level meter. The flow meter is used to collect the fluid surface flow velocity, then calculate the the average flow rate across the water section by model, combined with the water level measured by the water level meter as well as cross-section information to calculate the cross-flow cross-section area, so as to utilize the formula flow rate = average flow rate × cross-flow cross-section area ×correction coefficient to get the flow rate. The correction coefficient is based on the actual measurement of the environment obtained by the standard value of the calculation.
Non-contact measurement， with cross-section parameters to calculate the flow rate, not affected by wind, temperature, fog, sediment, floating objects, etc.
Applied to a wide range of measurement conditions, able to output s flow velocity, water level, and flow rate measurements
With powerful flow measurement software, can cross-section set data, receive and query flow statistics list, give statistics report and print it, and so on.
Low power consumption, solar powered Easy to install and maintenance free
