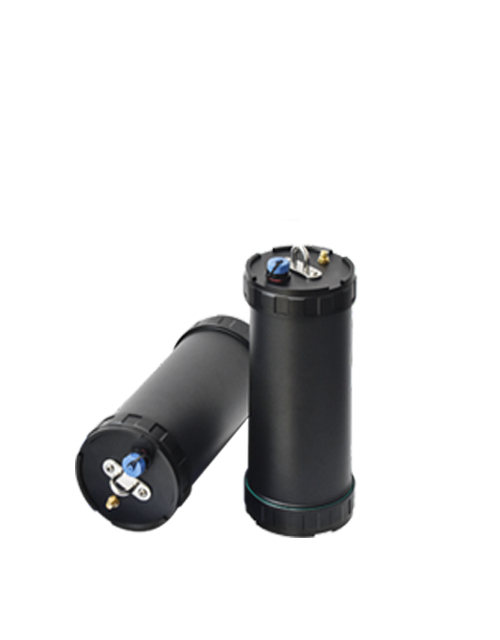

HR8180 Micro Power Consumption RTU

HR8180 RTU adopts high-performance lithium battery power supply, with instrument data acquisition, equipment status monitoring and 4G/3G/2G remote communication and other multi-functions, especially suitable for no utility power supply conditions, waterproof/dustproof working sites. It is widely used in the water supply and drainage/oil/heat/gas pipeline network measurement, groundwater, oilfield long shutdown wells, level measurement and other fields.


IP68 protection, waterproof, moisture-proof, dust-proof

Compact structure, small size, easy to install.

Low power consumption design, current lower to uA to extend battery life.

Compatible with common instrumentation

Self-powered, with its high-capacity lithium battery pack. High-capacity lithium

battery pack power supply, provide sufficient energy.

Product related

  • Download: 点击下载
  • Brand : 恒瑞HighReach
  • Model : HR8180
  • Mailbox : highreach@hr-tool.cn
  • Phone : 0917-3208995

Technical Parameters

Technical parameter



 Acquisition interface: 2-way serial port (serial port 1 RS232/RS485 optional, serial port 2 RS485)

Data format - 8-bit data bits, 1-bit stop bit, parity bit (odd, even, none) can be set

Baud rate - 1200, 2400, 4800, 9600, 19200, 38400, 57600 (Bit/S) optional

Communication: GPRS, SMS, Bluetooth

Communication BER: ≤ 10-6

Sleep current: ≤ 30uA/7.2V

Power Supply voltage: DC 7.2V~30V; default 12V.

Dimension: 210*85mm

 Dimension: 210*85mm

SIM card: Micro SIM

Working Environment: Temperature: -40~+85℃;

             Humidity: ≤95%.




Related parameters

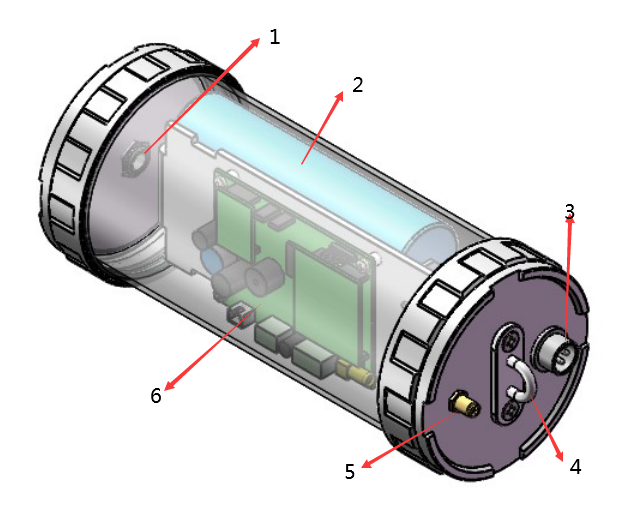

    1. External cable    2. Battery    3. Test Serial Port   4. Field Installation Ring      5. External Antenna Interface        6 . Circuit Boards
