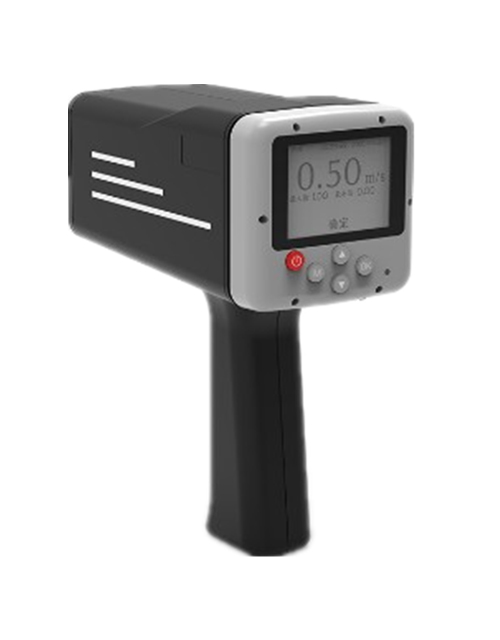

HR7320 Hand-held Radio(Radar)Velocity Meter

HR7320 hand-held radio (radar) velocity meter uses K-band radar for non-contact flow velocity measurement of rivers, sewage, mud, and ocean. It has the features of compact, hand-held, battery-powered, and easy to handle. It is unaffected by the sewage and sediment, and can be used for non-contact measurement within a measuring range of 100m,which ensures

For one person use, weight less than 700g;

Easy operation, 2000 set data storage for easy management

Non-contact operation, unaffected by sediment and free from water corrosion

Multiple measurement modes, can do one time measurement , duration is 100.0S;

Built-in rechargeable battery for 15 hours of continuous running

Waterproof structure, easy to use in the field.

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HR7320
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

1. Range:0.03~20m/s

2. Accuracy:±0.03m/s

3. Working temperature: -20~+70℃

4. Radio angle：12°

5. Radio transmission rate：18dBm

6. Radio frequency：24GHz

7. Protection level：IP67

8. Measure distance：100m

Related parameters

Portable case, main body

Build-in angle sensor

Build-in thermometer

Charger and rechargeable battery(build-in)

Wireless radar wave flow measurement software and cloud-based hydrological flow data management software(Optional)

Tripod and collimator(Optional)

Application:

River flow rate monitoring, sewage flow rate monitoring, ocean flow rate monitoring, flood control on-site emergency monitoring, etc.
