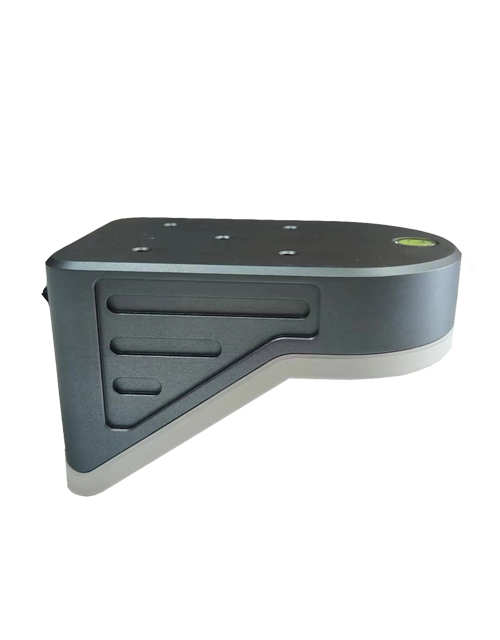

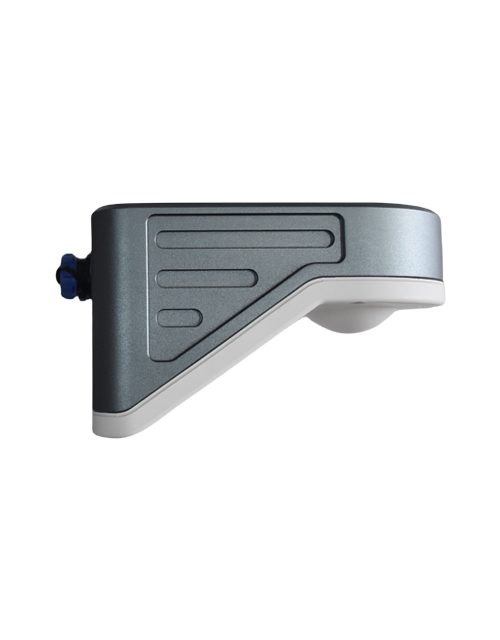

HR7580 Radar Flow Gauge

The HR7580 radar flowmeter is a product that utilizes radar technology to measure water flow velocity and water level, and calculates the water flow rate through an integration model. This product can measure water flow in real-time, regardless of the weather conditions, and its non-contact measurement method makes it less susceptible to environmental influences. The product is installed using a bracket, providing convenient installation.

Non-contact measurement of flow velocity, liquid level, and flow rate using a hybrid frequency radar

IP68 waterproof design, suitable for various field environments and extreme weather conditions.

Compact and sleek appearance, offering excellent cost-effectiveness.

Support for Modbus-RTU protocol, facilitating system integration.

Integrated reverse connection, lightning protection, and overvoltage protection functions.

Support for Bluetooth debugging via mobile phones, allowing convenient on-site maintenance by field personnel.

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HR7580
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

Range（Velocity）	0.05 m/s ~30m/s
Accuracy（Velocity）	±0.01m/s
Pitch Angle （Velocity） (Automatic Compensation)	0°x80°
Antenna Beam Angle	12°x25°
Range	0.08m～60m
Distance Accuracy	±1mm
Distance Antenna Beam Angle	6°
Power Supply	9~30VDC
Operating Current	25 mA @ 24 V in working mode, ≤1 mA @ 12 V in sleep mode
Communication Interface	RS485、Bluetooth for parameter adjustment
Communication Protocol	Modbus（9600/115200）
Operating Temperature	-40-80℃
Housing	Aluminum alloy, PBT

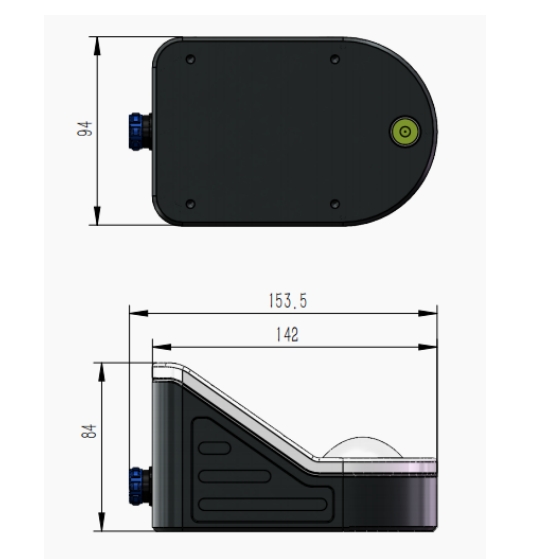

Dimensions（mm）	153mm94mm84mm
Protection Level	IP68
Installation Method	Bracket
