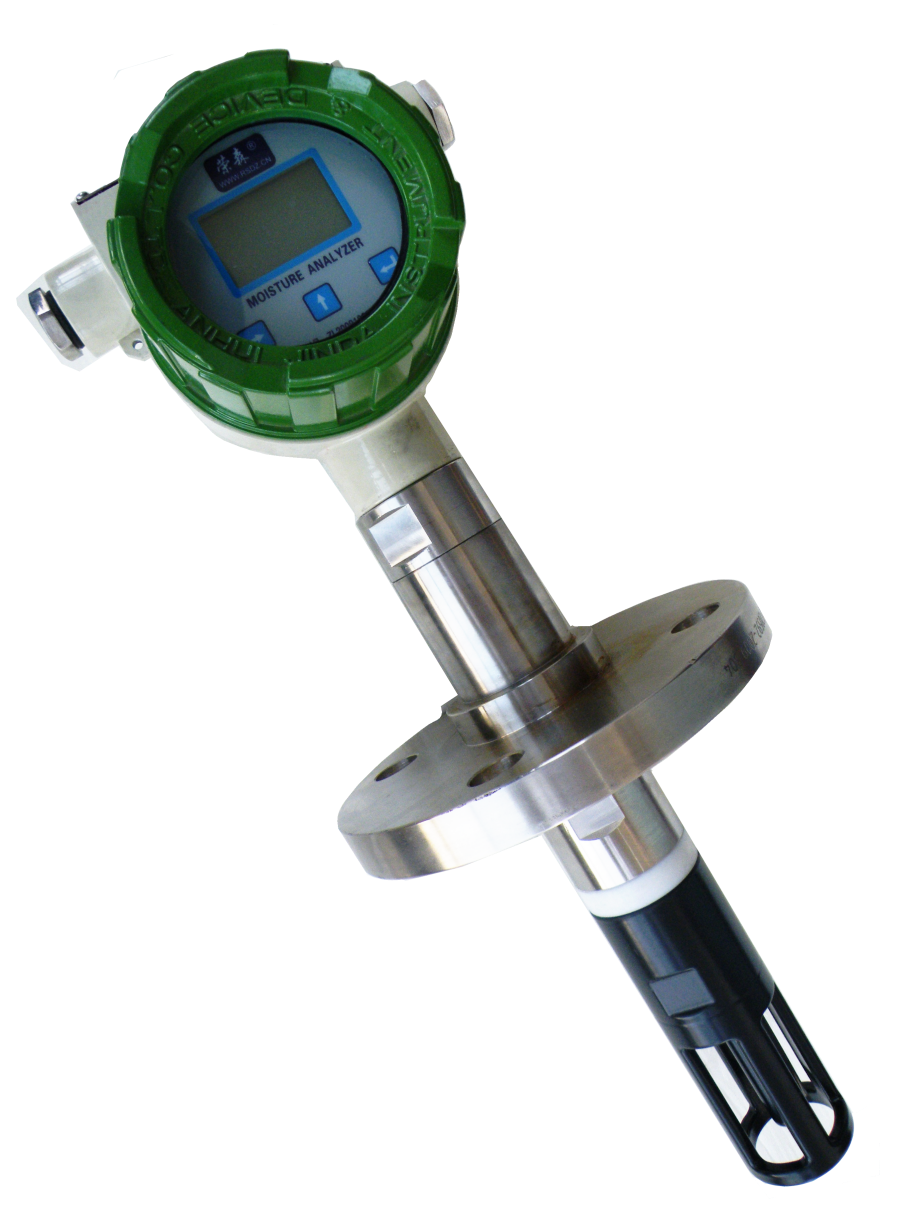

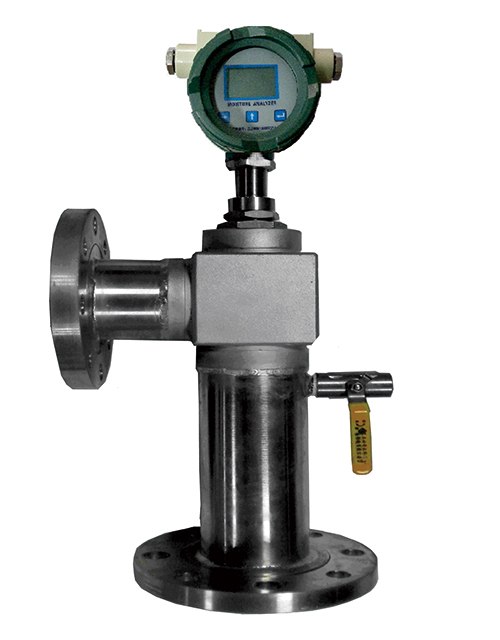

HRWP820 Online Immersion Liquid Moisture Meter

Derived from the innovative HRWP820 crude oil water cut radar logging tool, the HRWP820 is a high-temperature and high-pressure sensor designed for downhole petroleum applications. The promotion and application of microwave radar moisture sensors in the industrial field are rooted in the frequency-amplitude characteristics, ICVS calibration algorithm, and calibration templates of the HRWP820 radar fluid moisture analyzer. Building upon the success of the second-generation HRWP820 online immersion liquid moisture meter, it has become a leading industrial online liquid moisture measurement instrument internationally. It is primarily used for detecting the moisture content and medium temperature of mixed liquid media. By utilizing radar detection technology and simultaneously detecting the frequency and amplitude variations of the attenuation signal, it offers higher accuracy, better stability, wider range, increased reliability, more precise testing, on-site calibration, multi-functional capabilities, initial calibration, automatic temperature compensation, and wireless remote networking.

Crude oil exploration, extraction, development, refining, and transportation measurement.

Chemical raw materials, special lubricating oils for aviation, aerospace, and naval applications, as well as fuel.

Battery slurries, trace moisture monitoring in formaldehyde, methanol, acetone, ethanol, and other substances.

Juice, syrup, beverages, malt extract, various types of alcoholic beverages, and wine-making ingredients.

Measurement and settlement of additives, oil products, and material transportation exchanges.

Oil-water separation and measurement, process monitoring of various main and auxiliary ingredients.

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HRWP820
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

Range: When placing an order, choose any segment between 0-100%, for example: 30-90% (large range) (default); 1-30% (customized for local small range); More than 90% (customized for large quantities); Ppm-1% (minimum trace range) (customized);
Accuracy (laboratory): Reading± 0.01% FS (when the range is ppm-1%); Readings± 0.1% FS (when the range is 1-30%); Readings± 1% FS (when the range is 30-100%);
Probe allowable temperature: 80 ℃; 95 ℃ (customized); 130 ℃ (customized);
Installation method: Standard DN50 flange 2-inch clamp 2-inch thread (customizable);
Insertion depth: standard 200mm or customized according to customer requirements;
Quality: 5-10kg (determined by installation method and length);
Pressure resistance: 6MPa; 4.0MPa (customized); 60MPa (customized);
Temperature compensation sensor: PT1000 platinum resistor, measuring temperature range -40 ℃&dash+ 150℃
Probe material: 304 stainless steel (default); 316 stainless steel (customized); Titanium steel (customized);
Explosion proof performance: Explosion proof Ex Ia/d IIC T4~T6Ga/Gb (default); CE certification, ISO9001 certification;
Output: Analog output: 1 channel 4-20mA output, 2 channels 4-20mA output (moisture content and/or temperature can be set by oneself) (customized); Digital output: 1 RS-485 remote output, can be transmitted remotely with or without cables, networked;
Power supply: 24VDC± 20%/2w (other voltage inputs can be customized)
