HR8180F Micro Power Consumption RTU（With Display）

The HR8180F low-power intelligent telemetry terminal is powered by high-performance lithium batteries and has functions such as instrument data acquisition, equipment status monitoring, and 4G remote communication.

It is particularly suitable for monitoring sites without mains power supply conditions and high requirements for waterproofing/dust prevention. It is widely used in fields such as water supply and drainage, oil/heat/gas pipeline network monitoring, groundwater monitoring, oilfield long stop well monitoring, and liquid level monitoring.

Data collection: Regularly collect serial instrument detection data, such as liquid level gauges, flow meters, etc.

Remote communication: Regularly communicate data with the monitoring center through 4G network.

Remote maintenance: supports remote parameter settings and program upgrades.

Close range maintenance: supports mobile apps to set device parameters through Bluetooth.

High definition screen display, automatic screen rest.

Micro power consumption, current as low as uA level, extends maintenance cycle.

Product related

Download: 点击下载
Brand : 恒瑞HighReach
Model : HR8180F
Mailbox : highreach@hr-tool.cn
Phone : 0917-3208995

Technical Parameters

Interface: 2 serial ports (1 RS485 and 1 RS232 )

Communication methods: 4G, Bluetooth, serial port

Communication error rate: ≤ 10E-6

Sleep current: ≤ 100uA

Power supply voltage: DC 7-26V; Default 7.2V or 12V

SIM card type: Micro SIM

Working environment: Temperature: -40~+85 ℃; Humidity: ≤ 95%

Storage capacity: default 32Mb storage, 256Mb customizable.

Battery capacity: 38000mAh (7.2V); 1900mAh (12V)

Debugging serial port baud rate: 115200

Weight: 1.95 kg

Protection level IP68.

Built in barometer.

Complies with various communication protocols such as hydrology, water resources, environmental protection, MQTT, and national groundwater.

Reserve RS232 serial port for external connection to serial devices such as Beidou.

Compact structure, compact size, and easy installation.

Micro power consumption, current as low as uA level, extends maintenance cycle.

Customize the modbus RTU communication protocol.

Built in replaceable lithium battery pack, can be connected to external high-capacity battery pack or solar power supply system.

Suitable for various harsh environments, such as manholes, wilderness, etc.

Battery maintenance cycle 3-5 years (National Groundwater Regulations)

Related parameters

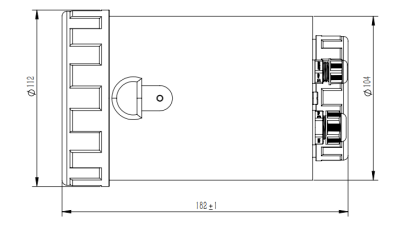

1. External dimensions (mm)

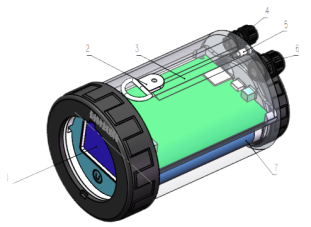

2. Structure

1.Screen; 2.Hanging ears; 3.Main board; 4. Antenna lead waterproof head;

5. Waterproof breathable valve; 6. Sensor lead waterproof head; 7. Battery pack;

8. Battery plug; 9. Type-C debugging interface; 10. Micro SIM card slot

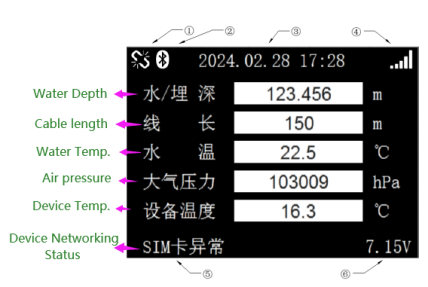

3. Display

① Sensor communication alarm; ② Bluetooth connected; ③ Equipment system time; ④ Signal strength; ⑤ Device networking status; ⑥ supply voltage

Note:

1. The screen display interface may vary depending on the connected sensor or communication protocol.

2.Language can be customized.
