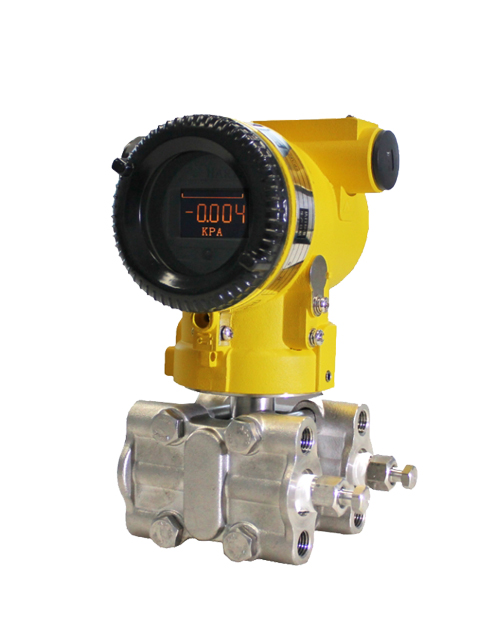

HR3051S DP Intelligent Monocrystalline Silicon Differential Pressure Transmitter

HR3051S DP series smart Monocrystalline Silicon differential pressuretransmitter is a high- precision,high- stability,multi-parameter pressuremeasurement product,with HART protocol.The digital technologycombined with the international advanced Mono core design andmanufacturing technology.The reliable explosion-proof structure designand standardized signal output,high accuracy and wide range, suitablefor precision measurement of fluid pressure.

Meeting GB3836 standard , Obtained Explosion-p

The sensor adopts digital compensation and nonlinear correction

Laser marking, exquisite appearance

Digital circuit design,on- site adjustment button to zero

Adjustable turndown ratio up to 100:1

High accuracy 0.075% F.S

产品相关

资料下载: 点击下载
产品品牌 : 恒瑞HighReach
订货型号 : HR3051S DP
联系邮箱 : highreach@hr-tool.cn
变送器咨询电话 : 15686900127

技术参数

Performance Index

Item	Technical Parameters
Pressure Range	0- 50Pa ～ 3MPa（Specific refer to selection table）
Pressure Type	Differential Pressure
Overload Pressure	150% measurement range
Working Pressure	Static pressure16MPa、25MPa、40MPa Optional
Long- term Stability	0.1%F.S/Year
Accuracy	0.075%F.S / 0.1%F.S / 0.25%F.S Optional
Working Temp.	- 20℃～ 80℃
Power Supply	12V ～ 32VDC（Recommend24VDC）
Output Signal	4mA～20mADC / 1V- 5VDC / RS485 Optional
Protocal	MODBUS RTU/ HART
Cable Entry	M20*1.5
Protection Grade	IP65
Explosion-Proof level	Exia II CT6 Ga、Exd II CT6 Gb、ExtD A21 IP66 T80℃
Products Warranty	12 months
