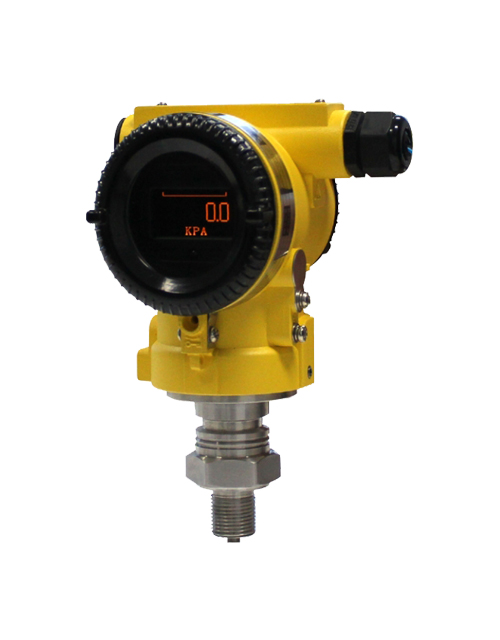

HR3051S TG/TA Monocrystalline Silicon Pressure Transmitter

HR3051S TG/TA Monocrystalline Silicon Pressure Transmitteris a high- precision,high- stability,multi-parameter pressuremeasurement product,with HART protocol.The digital technology combined with the international advanced Mono core design and manufacturing technology.The reliable explosion-proof structure design and standardized signal output,high accuracy and wide range, suitable for precision measurement of fluid pressure.

Wide measurement range.Gauge,Absolute,Negative pressure

The sensor adopts digital compensation and nonlinear correction

IP65 protective design, suitable for wild, open air,etc

Digital circuit design,on- site adjustment button to zero

Laser marking, exquisite appearance

Adjustable turndown ratio up to 100:1

产品相关

  • 资料下载: 点击下载
  • 产品品牌 : 恒瑞HighReach
  • 订货型号 : HR3051S TG/TA
  • 联系邮箱 : highreach@hr-tool.cn
  • 变送器咨询电话 : 15686900127

技术参数

Performance Index

Item

Technical Parameters

Pressure Range

0- 50Pa 40MPaSee selection table

Pressure Type

Gague,Absoulte,Negative PressureOptional

Long- term Stability

0.1%F.S/Year

Accuracy

0.075%F.S 0.1%F.S 0.25%F.S Optional

Working Temp.

- 20℃80℃

Power Supply

12V 32VDCRecommend24VDC

Output Signal



4mA 20mADC / 1V- 5VDC / RS485 Optional

Protocal

MODBUS RTU/ HART

Cable Entry

M20*1.5(F)

Protection Grade

IP65

Explosion-Proof level

Exia II CT6 Ga,Exd II CT6 Gb,ExtD A21 IP66 T80℃

Products Warranty

12 months

Overload limit

6kPa

0.2MPa

40kPa

1MPa

250kPa

4MPa

3 M P a

15MPa

1 0 M P a

20MPa

20MPa

50MPa

40MPa

50MPa



相关参数

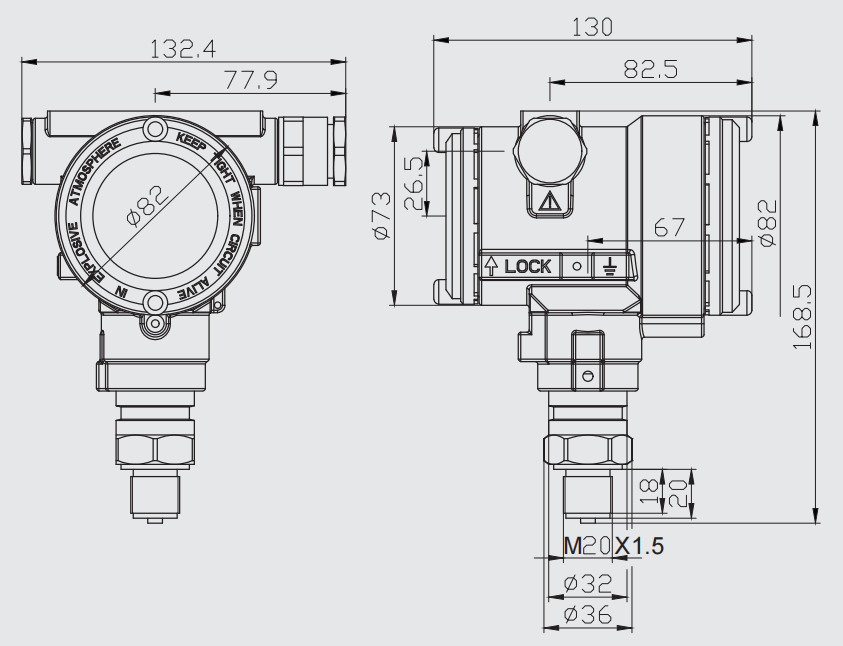

Diamensions
