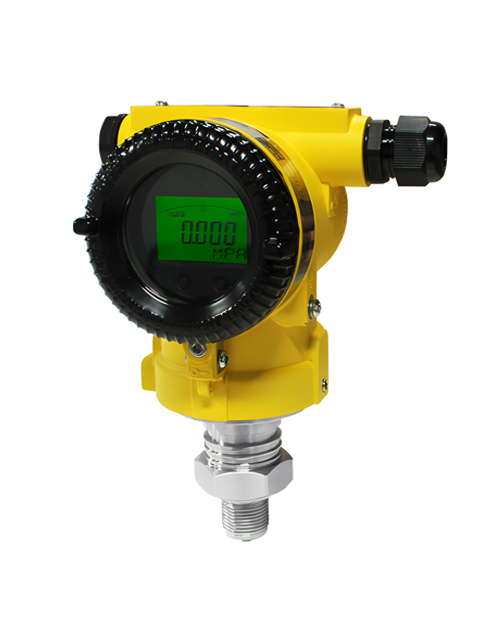

HR3051 T Intelligent Direct- Mounted Pressure Transmitter

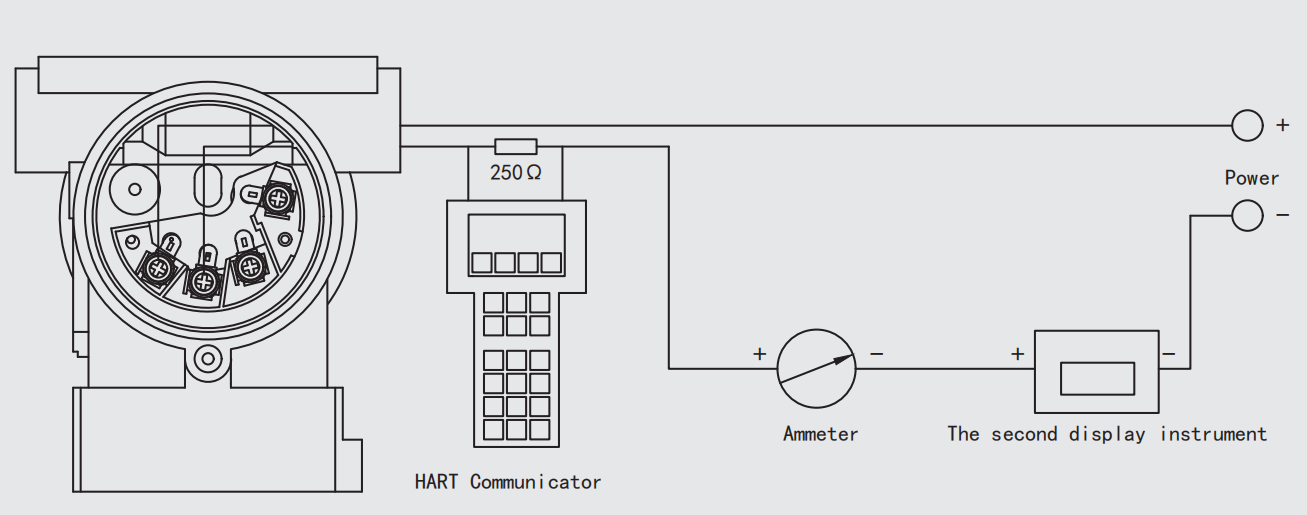

HR3051T series Intelligent direct mount pressure transmitter is a high -precision, high -stability, multi -parameter pressuremeasurement product,with HART protocol. The reliable explosionproof structure design and standardized signal output, high accuracy and wide range, suitable for precision measurement of fluid pressure. Performing digital communication with HART375 Communicator, and electromagnetic radiation meets the IEC801 standard.

Wide measurement range.Gauge,Absolute,Negative pressure

The sensor adopts digital compensation and nonlinear correction

IP65 protection design, suitable for field, open air and other harsh environments

Meeting GB3836 standard , Obtained Explosion-proof certificate

Laser marking, exquisite appearance

Digital circuit design,on- site adjustment button to zero

产品相关

资料下载: 点击下载
产品品牌 : 恒瑞HighReach
订货型号 : HR3051 T
联系邮箱 : highreach@hr-tool.cn
变送器咨询电话 : 15686900127

技术参数

Performance Index

Item	Technical Parameters
Pressure Range	0- 5kPa ～ 260MPa（Specific refer to selection table）
Pressure Type	Gague,Absoulte,Negative Pressure（Optional）
Overload Pressure	Allow overload 150%,Burst Pressure :200%
Long- term Stability	0.1%F.S/Year
Accuracy	0.075%F.S 0.1%F.S 0.25%F.S Optional
Working Temp.	- 20℃～ 80℃
Power Supply	12V ～ 32VDC（Recommend24VDC）
Output Signal	4mA ～ 20mADC / 1V- 5VDC / RS485 Optional
Protocal	MODBUS RTU/ HART

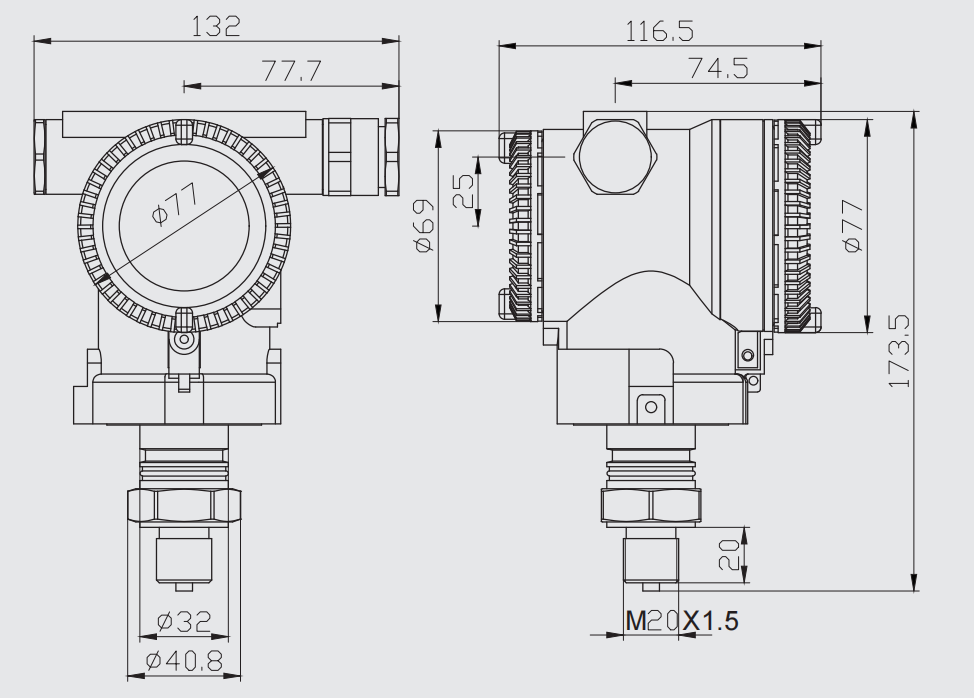

Cable Entry	M20*1.5(F)
Protection Grade	IP65
Explosion-Proof level	Exia II CT6 Ga、Exd II CT6 Gb、ExtD A21 IP66 T80℃
Products Warranty	12 months
